Now Introducing,
THE ZEUS ZERO EMISSIONS COMPRESSOR PACKAGE
Zero Emission refers to an eco-friendly energy source that does not produce any waste which can pollute the environment and disrupt the climate.
The Leader In Providing High-Quality Emergency Shut Down Systems (ESD) In The Oil And Gas Industry
Environmental distress caused from pollution and waste are becoming an increasingly pressing issue surrounding the oil and gas industry.
As the world becomes increasingly industrialized, the oil and gas industry has come under scrutiny for its environmental practices. One of the major concerns is the pollution and waste produced by oil and gas extraction. Valves, controls, and other equipment used in drilling can leak harmful chemicals into the air and water. In addition, compressor stations and gas wells can release large amounts of methane, a powerful greenhouse gas. As a result, oil and gas production can have a significant negative impact on the environment.
Fortunately, there are steps that the industry can take to reduce its environmental impact. For example, using cleaner-burning natural gas instead of oil can help to reduce emissions. In addition, better control over valves and other equipment can help to prevent leaks. Finally, using compressed air instead of natural gas can help to reduce methane emissions. By taking these steps, the oil and gas industry can help to protect the environment.
Incorporating a zero-emissions compressor package eliminates waste thusly placing your company ahead of the curve while not sacrificing your company's energy production.
Valves are used to control the flow of gas or oil in a pipeline, and are an essential part of any compressor package. By incorporating a zero-emissions compressor package, your company can eliminate waste while still maintaining production. This not only places your company ahead of the curve, but also demonstrates a commitment to sustainability. In addition, a zero-emissions compressor package can help to reduce your company's carbon footprint. By investing in this type of technology, you can show your customers that you are committed to protecting the environment.
Ensure you exclude waste and pollution through eco-friendly compressed air.
Exclusion of waste and pollution is essential to having eco-friendly compressed air. Valves and controls must be in working order to exclude any gas or oil that may come from a compressor, gas well, or oil well. In addition, the compressor must be operated and maintained so that there are zero emissions. By taking these steps, you can ensure that your compressed air is eco-friendly and free of pollutants.
Arpco Valves & Controls acknowledges the importance of keeping your energy needs at full production while simultaneously eradicating harmful environmental pollution and waste.
At Arpco, we understand the importance of keeping your energy needs at full production while simultaneously eradicating harmful environmental pollution and waste. That's why we've designed ZEUS to be Zero Emission, meaning they don't release any harmful emissions into the atmosphere. We also offer a line of high-efficiency compressors that use less gas and oil, making them more environmentally friendly. And our gas well and oil well equipment is designed to minimize the impact on the environment. So when you choose Arpco, you can be confident that you're doing your part to protect the planet.
A company focused on the safety of all those working around oil and gas wells.
We pair the right products with the proper configuration to achieve maximum safety and productivity.
Plus, we maintain and service those products to sustain the safety of your business, clients, and team members.
Get Your Custom Quote Today.
ZEUS
ZERO EMISSIONS COMPRESSOR PACKAGE
Compressed Air
Staying ahead of regulatory changes is our primary goal. The use of compressed air is your answer to zero-emission. Compressed air allows you to properly operate while meeting the energy needs required in the production process.
What is Zero Emission?
In an effort to create a more sustainable world, Zero Emission refers not just to energy sources but also to technologies that emit no waste product. This concept has been gaining momentum as we strive for a cleaner and healthier environment.

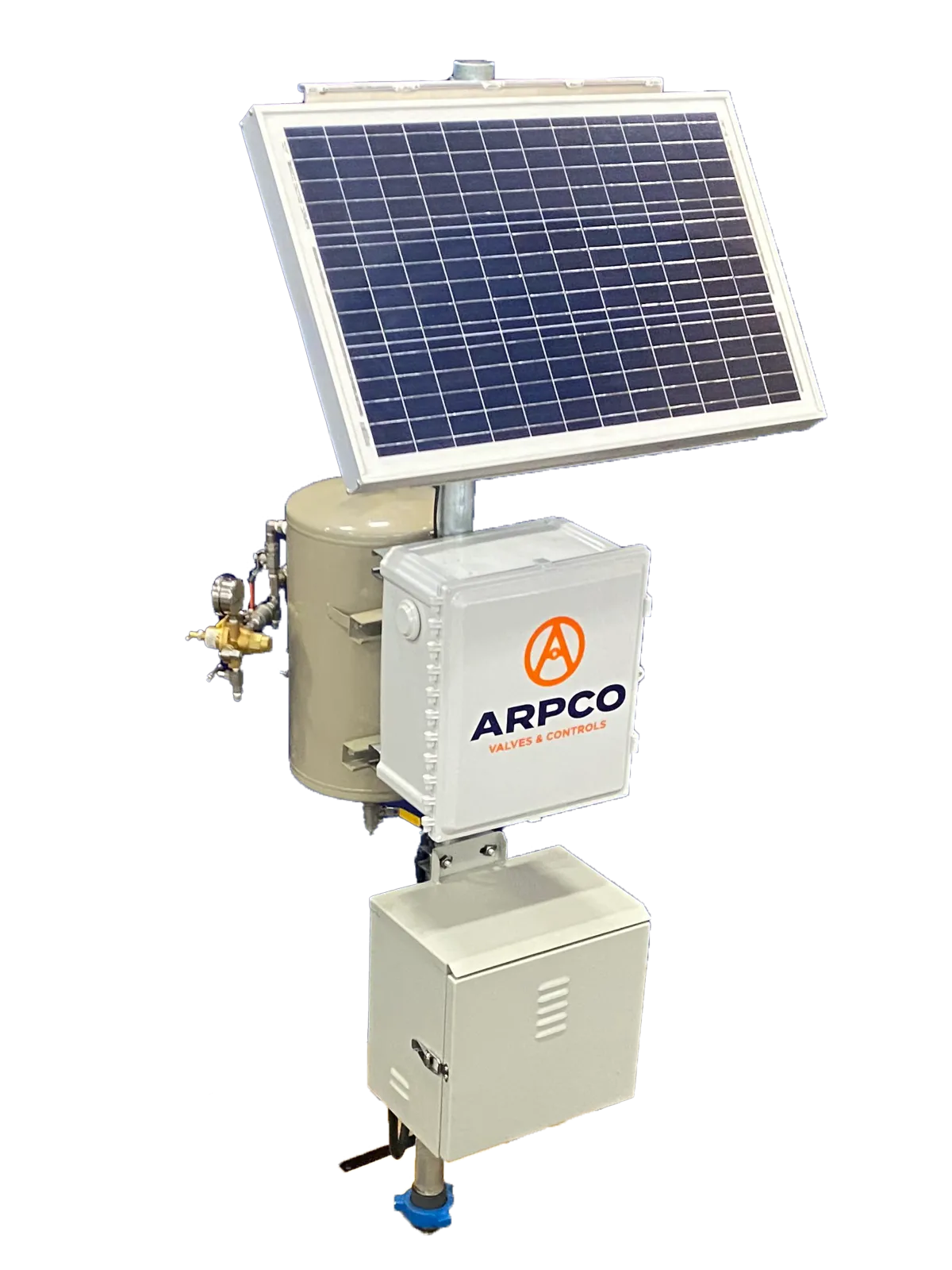

Total ZEUS Package
Consists of:
• 100 WATT SOLAR MODULE ASSEMBLY
• 12 VDC 100 AH BATTERY IN A ENCLOSURE
• START/STOP SWITCH SET AT 110 PSI LOW, 145 PSI HIGH
• BATTERY CHARGE CONTROLLER WITH LOW BATTERY CUT OFF
• COMPRESSOR, SWITCH AND CHARGING CIRCUIT HOUSED IN A
10”X14”X8” POLYCARBONATE ENCLOSURE
• DESIGNED TO MOUNT VERTICALLY ON A 2” DIAMETER PIPE
Air Compressor:
•12-VOLT
•PERMANENT MAGNETIC MOTOR
•DUTY: 100% @ 100 PSI, 50% @ 200 PSI
•MAX. WORKING PRESSURE: 200 PSI
•AMP DRAW: 23 AMPS
•MIN. AMBIENT TEMP: -40° F
•MAX. AMBIENT TEMP: 158° F
•DIMS: 11.50”L X 4.30”W X 6.50”H
•NET WEIGHT: 11 LBS
11 Gallon Tank Fill Rate:
0-20 PSI..............................1 MIN. 13 SEC.
0-40 PSI.............................2 MIN. 40 SEC.
0-60 PSI.............................4 MIN. 25 SEC.
0-80 PSI.............................6 MIN. 20 SEC.
0-100 PSI...........................8 MIN. 20 SEC.
0-105 PSI...........................8 MIN. 35 SEC.

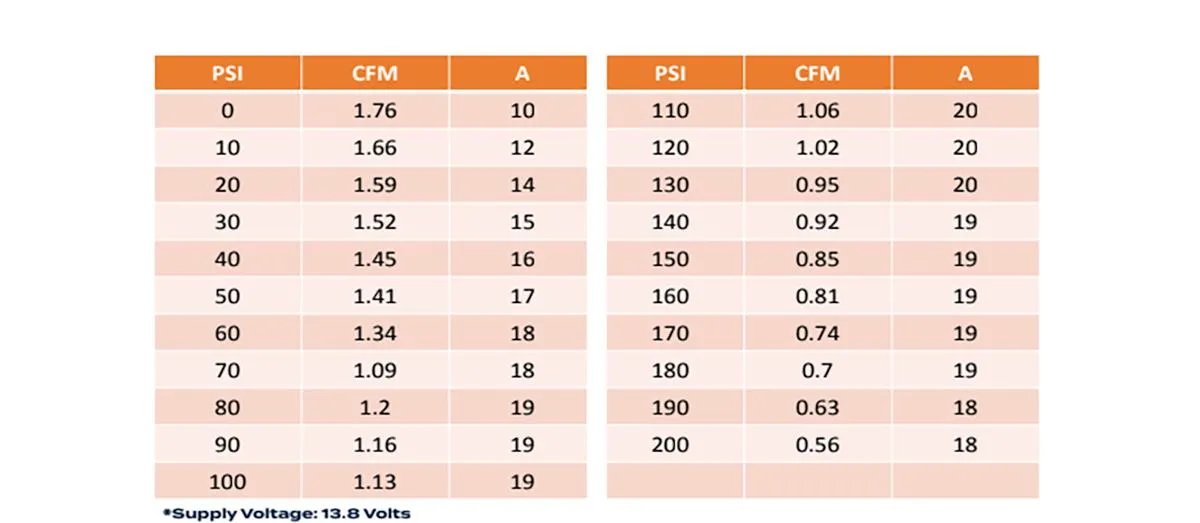

Performance Data:
Give Us A Call Today! (903) 636-7909
Give Us A Call Today! (903) 636-7909
Other Products and Services

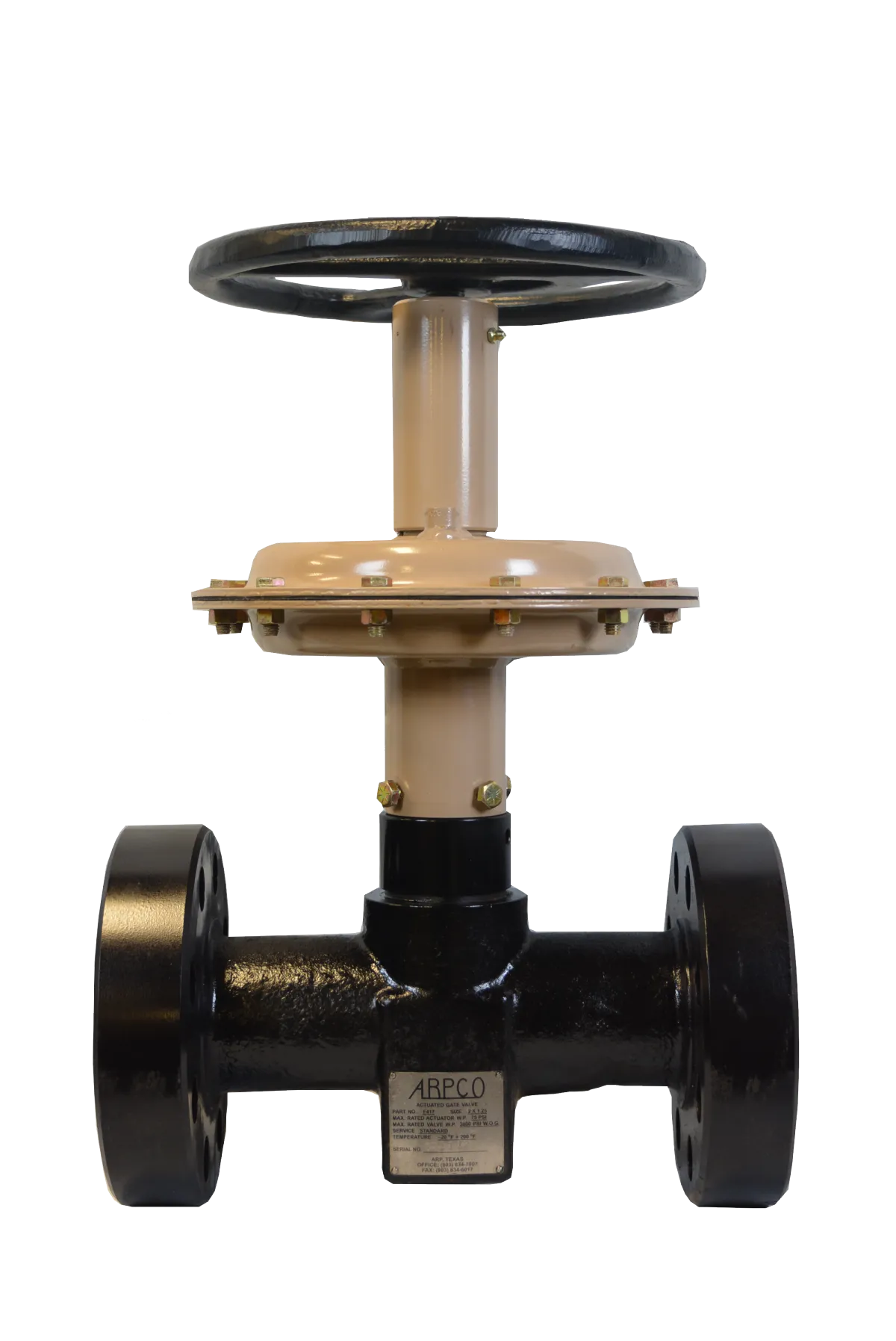

Our Legacy Valve is a bi-directional valve (it can stop flow from either side) with a reverse-acting gate; it is a no-weld one-piece body.
Our valve comes standard in 3,000# threaded or flanged and is 100% American Made right here in East Texas.
Product Line
Rental Valves
• Supplied in the fail-closed configuration.
• Drives the valves reverse ported gate
down and holds it in the open position
under normal operating conditions.
• In an abnormal condition, the actuator
supply pressure is released or bled off
by quick exhaust mechanisms
Pneumatic Controls
• Standard assembly comes with two
pressure switches mounted on a 6”, 1⁄2’
NPT manifold, tubed together using a
1⁄4” stainless steel tubing.
• The pressure switches can be set to
customer-specified settings.
• 1⁄4” NPT part which can be used
as a test connection
• Stainless steel construction
• Solenoid valve rated to 150 PSI
• Dry or liquid filled switch-gauge
• Pressure ranges up to 20,000 PSI
• Optional solar panel available
Epilot Boxes
• High/low switch-gauge with
visual indication
of set points for shutdown
• Selectable ‘auto reset’
• Two additional channels with
wiring supervision
• Available field connection
device cable
• Low battery indication and
shut down
• Rugged stainless enclosure
• Stainless steel construction
• Solenoid valve rated to 150 PSI
• Dry or liquid filled switch-gauge
• Pressure ranges up to 20,000 PSI
• Optional solar panel available
Epilot Boxes
• High/low switch-gauge with
visual indication
of set points for shutdown
• Selectable ‘auto reset’
• Two additional channels with
wiring supervision
• Available field connection
device cable
• Low battery indication and
shut down
• Rugged stainless enclosure
Needle Valves—CS & SS
6000# & 10,000#
• 1/4” Needle Valves
• 1/2” Needle Valves
• 1/4” 10,000# SS Mini Needle Valve
• 3-Way Needle Valve"
SS Tubing- Rolls and Joints
• 1/4” SS Tubing
• 3/8” SS Tubing
• 1/2” SS Tubing
SS Tubing Fittings
• 90° Elbow
• Tees
• Straights
Actuators
• Pneumatic
• Hydraulic
Valves—API—6A
• Arpco 3000# Gate Valve
• Arpco 3000# FE Gate Valve
• Arpco 3000# Threaded Safety Control
Valve w/ Actuator
• Arpco 3000# FE Safety Control
Valve w/ Actuator
• 5000# Safety Control Valves
• 10,000# Safety Control Valves
• 5000# FE Gate Valves
• 10,000# FE Gate Valves
Needle Valves—CS & SS
6000# & 10,000#
• 1/4” Needle Valves
• 1/2” Needle Valves
• 1/4” 10,000# SS Mini Needle Valve
• 3-Way Needle Valve"
SS Tubing- Rolls and Joints
• 1/4” SS Tubing
• 3/8” SS Tubing
• 1/2” SS Tubing
SS Tubing Fittings
• 90° Elbow
• Tees
• Straights
Actuators
• Pneumatic
• Hydraulic
Valves—API—6A
• Arpco 3000# Gate Valve
• Arpco 3000# FE Gate Valve
• Arpco 3000# Threaded Safety Control
Valve w/ Actuator
• Arpco 3000# FE Safety Control
Valve w/ Actuator
• 5000# Safety Control Valves
• 10,000# Safety Control Valves
• 5000# FE Gate Valves
• 10,000# FE Gate Valves
Your safety is our top priority! Arpco Valves & Controls specializes in high-quality, durable oil and gas surface safety systems. We offer a variety of products for individual needs including our bi-directional, no weld, one-piece body valves that come standard with 3,000# threaded or flanged and is 100% American made, right here in East Texas.
